At HL Galvatech Pvt Ltd, we understand that a galvanizing plant performs at its best only when every supporting system functions in harmony with the core process.
Our Utility & Auxiliary Systems are therefore designed not as add-ons but as essential extensions of the galvanizing line — improving safety, energy efficiency, and environmental performance while simplifying daily operations.
Each system is developed through in-house engineering, 3-D modelling, and years of plant-operation feedback to deliver proven reliability in the most demanding industrial environments across India, the Middle East, and Africa.

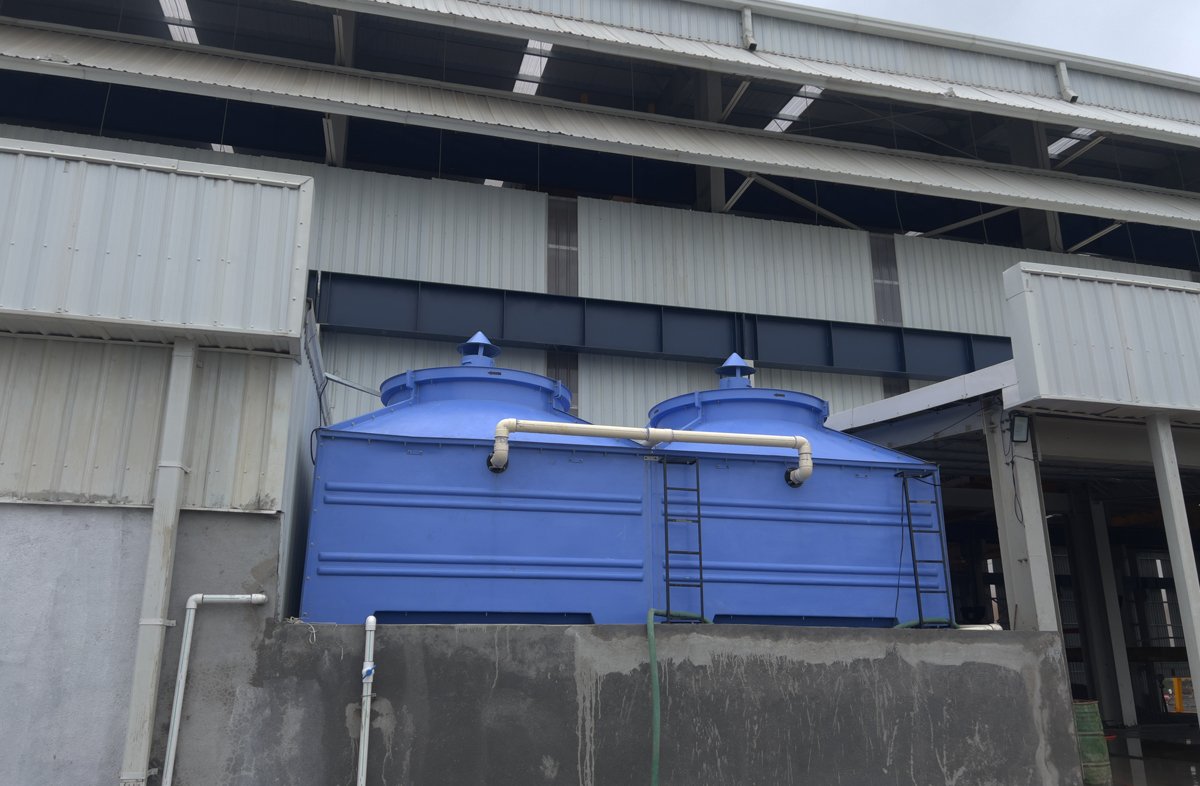

HL Galvatech cooling towers remove residual heat from flux heating loops, hydraulic power packs, and furnace jackets.
Fabricated from FRP or galvanized-steel casings with corrosion-proof PVC fill, they ensure stable process temperatures even under continuous 24 × 7 operation.
Optional drift eliminators and variable-frequency fan drives optimize water and power usage.
Benefits: Compact modular design, long service life, reduced scaling, and sustainable heat-rejection performance.
Every degree of heat saved at the zinc kettle translates directly into lower fuel cost.
HL Galvatech insulated covers are built from high-density ceramic-fiber blankets encased in a heat-resistant MS shell coated with aluminium-silicate refractory paint.
The design minimizes zinc oxidation, reduces ash formation, and improves operator comfort around the furnace.
Benefits: Up to 15 % fuel savings, longer kettle life, and a cleaner working atmosphere.
Handling acids and fluxes safely is vital for both people and plant longevity.
Our transfer systems use PP/FRP-lined pipelines, mechanical-seal pumps, and acid-proof valves to move liquids between storage and process tanks without exposure.
Automated level-control and inter-lock valves prevent overfilling and backflow.
Benefits: Zero leakage, operator safety, consistent chemical concentration, and easy maintenance.
Efficient removal of zinc dross maintains molten-bath quality and prevents metal loss.
HL Galvatech drossers feature balanced handles, heat-resistant blades, and adjustable angles for precise skimming.
Each unit is fabricated from 25/20 Ni-Cr alloy or HK-40 steel to withstand repeated immersion.
Benefits: Less zinc wastage, reduced ash, improved coating uniformity, and extended kettle lifespan.

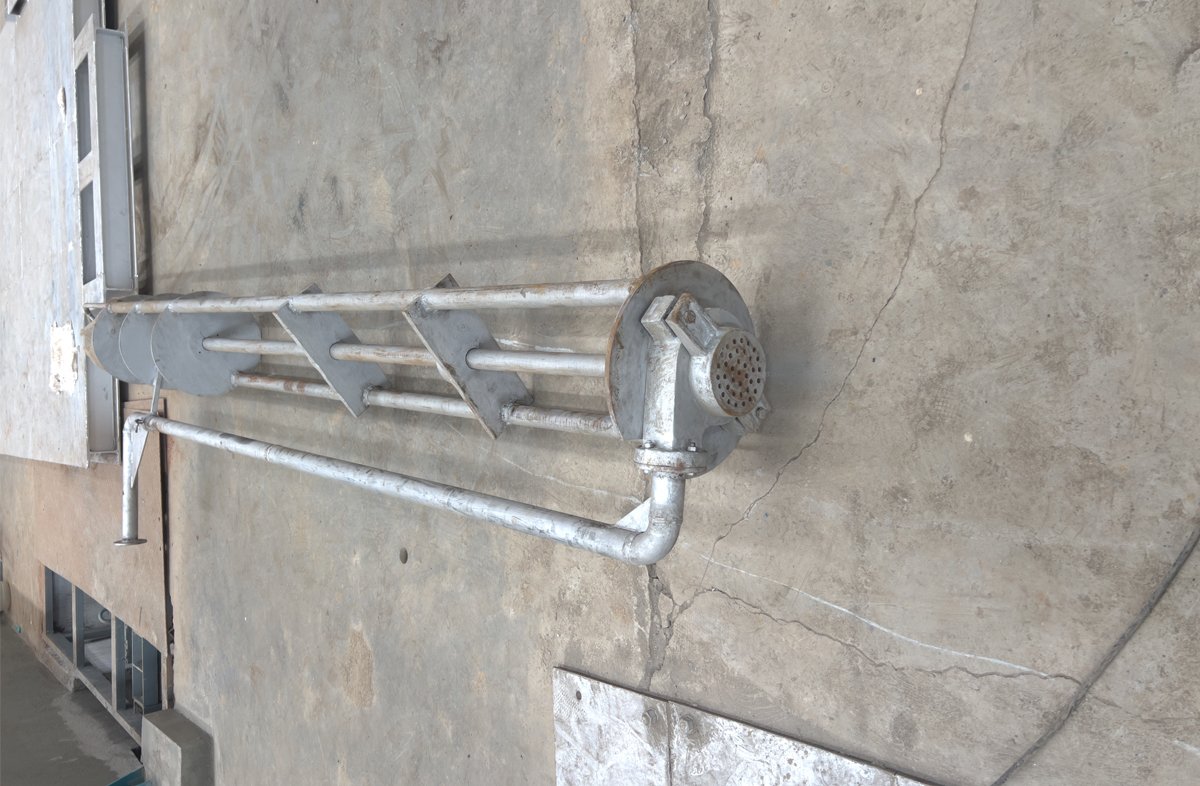

In emergency conditions such as kettle puncture or preventive maintenance, rapid evacuation of molten zinc is critical.
Our zinc-removal pumps employ heat-resistant impellers, ceramic-sleeve shafts, and flame-proof drives for safe high-temperature operation.
The system allows controlled transfer of zinc into moulds or standby kettles, protecting furnace insulation and surrounding structures.
Benefits: Prevents furnace damage, enables quick restart, and enhances overall plant safety.
Built for continuous chemical service, HL Galvatech acid pumps feature PP/PTFE wet ends, Teflon bellows seals, and non-metallic housings for complete corrosion resistance.
Available in vertical or monoblock configurations, they offer quiet, vibration-free performance with minimal maintenance.
Benefits: Safe handling of aggressive acids/alkalis, leak-proof operation, and long service intervals.

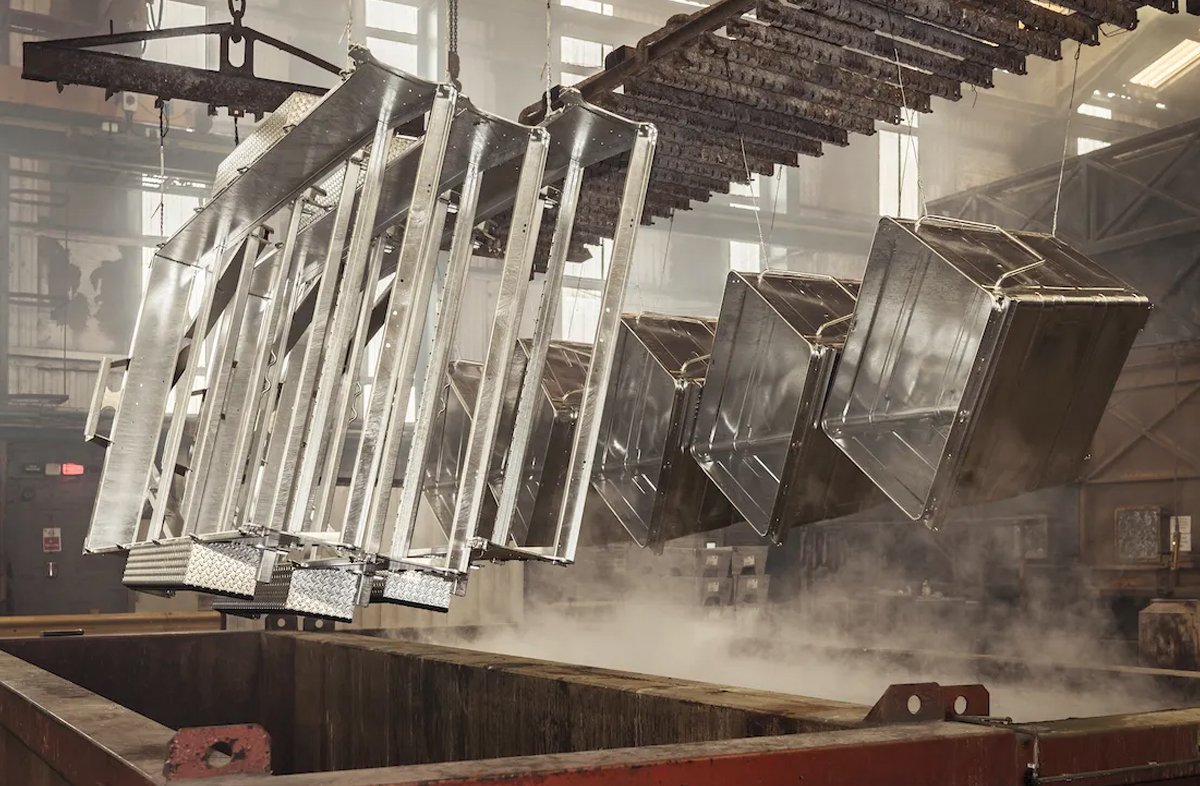

Custom-fabricated lifting jigs and support hooks ensure perfect balance and full zinc coverage for structures of every geometry.
All jigs are manufactured from graded mild steel or alloy steel, shot-blasted, and coated with heat-resistant paint.
Ergonomic design and optimized load distribution minimize deflection and operator fatigue.
Benefits: Faster dipping cycles, flawless coating uniformity, reduced handling time, and longer service life.
Our hydraulic and chain-type stations provide synchronized lifting and lowering for heavy or asymmetrical assemblies.
Equipped with proportional-valve control, load sensors, and safety interlocks, they enable splash-free immersion and precise alignment with the kettle edge.
Integration with conveyors or transfer trolleys allows smooth end-to-end material flow.
Benefits: Safer handling, reduced downtime, and optimized manpower utilization.

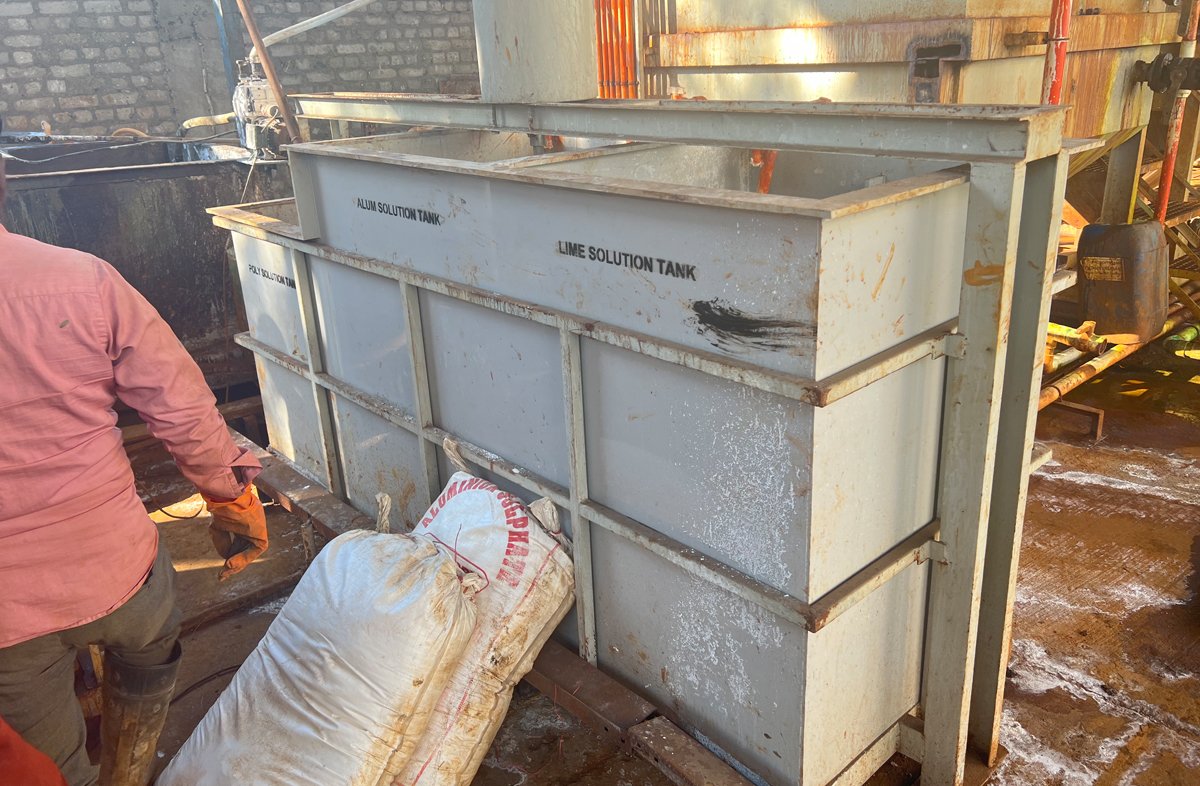

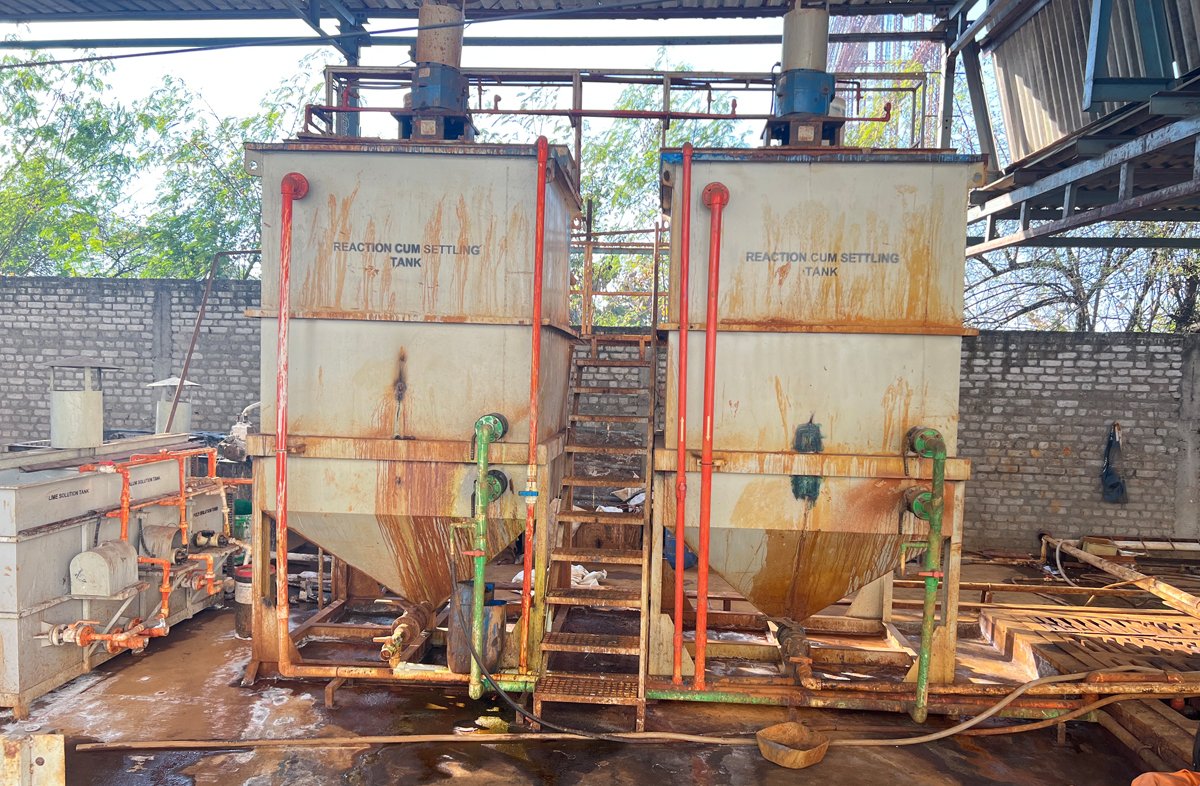

HL Galvatech offers turnkey effluent systems incorporating neutralization, flocculation, filtration, and sludge dewatering.
All contact parts are PP/FRP or HDPE lined for chemical resistance.
Automated pH and ORP controls ensure treated water meets CPCB / GPCB norms for reuse or safe discharge.
Benefits: Full environmental compliance, reduced freshwater demand, and eco-friendly operation.

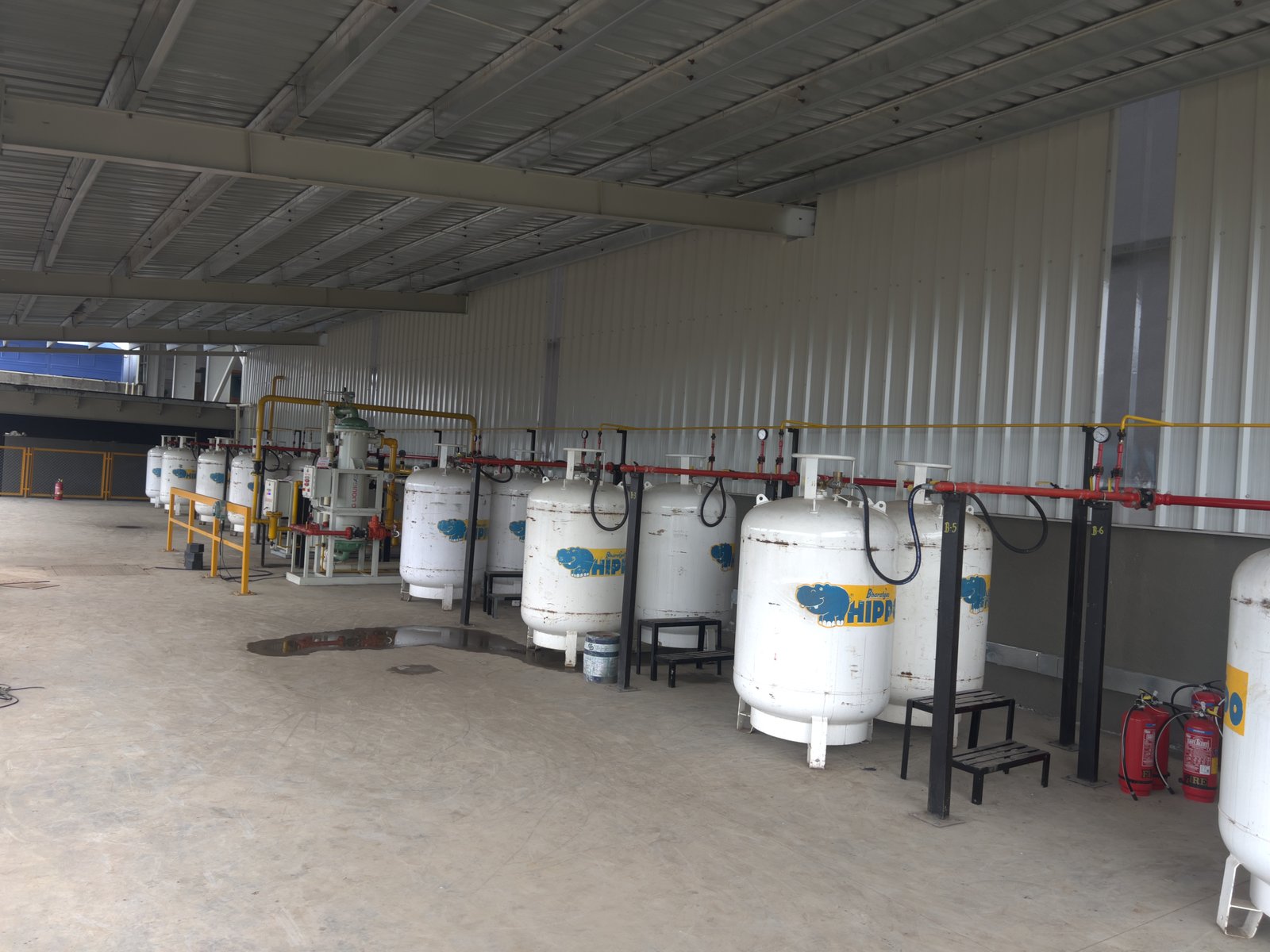

Safe, compliant storage of LPG / PNG fuels is vital for furnace reliability.
Our installations include PESO-approved bullet tanks, vaporizers, pressure regulators, and SS flexible lines with flame-arrestor safety.
Automatic cut-off valves and leak-detection systems protect both plant and personnel.
Benefits: Continuous fuel supply, stable burner performance, and maximum operational safety.
HL Galvatech provides complete utility interconnections — process pipelines, control wiring, and power cabling — up to our equipment panels.
All routes are engineered for minimum pressure loss and easy access.
By executing mechanical and electrical integration under one responsibility, we guarantee faster commissioning and zero interface errors.
Benefits: Seamless plant integration, lower installation time, and single-point accountability.
HL Galvatech Utility & Auxiliary Systems — the invisible backbone of every high-performance galvanizing plant, engineered to support, protect, and sustain your production 24 × 7.
